Features
2000 – 4000 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
MMDS, WLAN, WiMax, WiBro, WiFi, ISM, LTE Band
Tape and Reel Option
Specifications

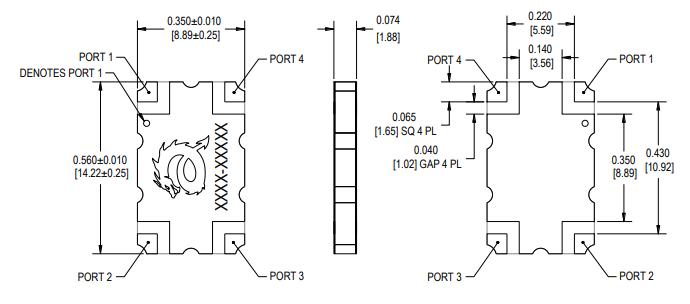

Size: .560 x .350 inches
Frequency: 2000-4000 MHz
Power: 50 W
Insertion Loss: .22 dB
Amplitude Balance: ± .55
Isolation: 24 dB
VSWR: 1.18
Phase Balance: ± 3
