TOREX降壓型DC/DC轉換器
發布時間：2022-04-26 17:01:40 瀏覽：934
近年來，移動終端、智能穿戴設備和物聯網設備等電池驅動的電子產品已經隨處可見。為了提升產品的設計靈活性，滿足確保配置新功能所需空間的微型化規定要求，要求將這些產品上攜帶的模塊的功能損耗降至極限，為了實現電池的微型化，提高電池的使用期限。

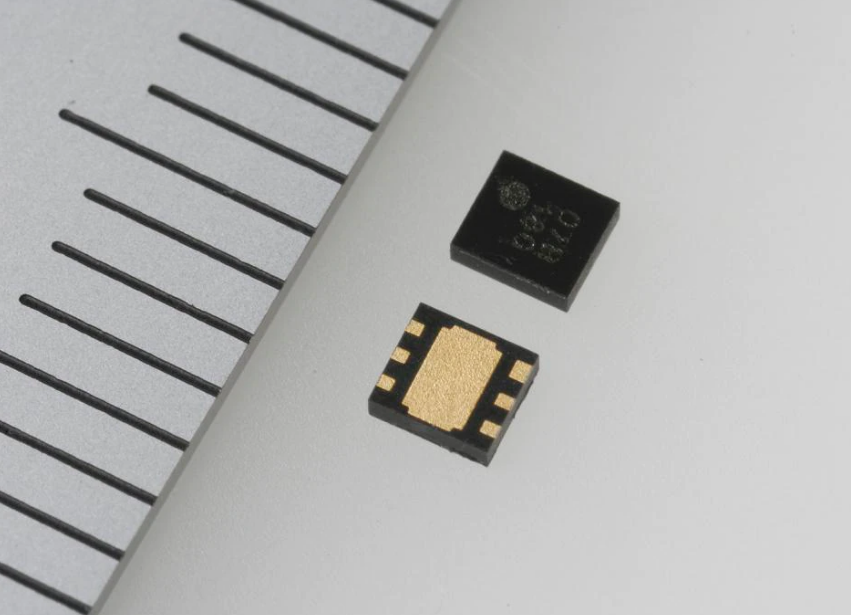

TOREX降壓型DC/DC轉換器選用超低功耗電源電路和PFM控制。它是具備輸出電壓開關功能的降壓同步整流DC/DC變換器。選用PFM控制方法可以明顯提升輕載下的效率。通過向VSET引腳輸入外部信號，可以在兩個值之間轉換輸出電壓。TOREX降壓型DC/DC轉換器的輸出電壓轉換功能可以為MCU的工作模式選擇最好的輸出電壓，有利于減少整個設備的功能損耗。
深圳市立維創展科技有限公司，優勢分銷TOREX電源器件，大量現貨庫存，歡迎合作。
詳情了解TOREX請點擊：http://www.sengliu.cn/brand/62.html
產品系列 | VIN(MIN)
(V) | VIN(MAX)
(V) | VOUT(MIN)
(V) | VOUT(MAX)
(V) | IOUTorIIN
(mA) | FB/VOUT電壓精度 | 振蕩頻率(kHz) | 消耗電流(μA) | 溫度范圍(℃) |
XC9276 | 1.8 | 6 | 0.5 | 3.6 | 150 | ±2.0% | - | 200nA＠VOUT=1.8V | -40～+85 |
XC9281 | 2.5 | 5.5 | 0.7 | 3.6 | 600 | ±1.5% | 4000
6000 | 590 | -40～+105 |
XC9282 | 2.5 | 5.5 | 0.7 | 3.6 | 600 | ±1.5% | 4000
6000 | 11 | -40～+105 |
XC6365 | 2.2 | 10 | 1.5 | 6 | 1000 | ±2.5% | 180
300
500 | 15 | -30～＋80 |
XC6366 | 2.2 | 10 | 1.5 | 6 | 1000 | ±2.5% | 180
300
500 | 15 | -30～＋80 |
XC9213 | 4 | 25 | 1.5 | 15 | 5000 | ±1.5% | 300 | 450 | -40～＋85 |
XC9220 | 2.8 | 16 | 1.2 | 15 | 3000 | ±1.5% | 300
500
1000 | 25 | -40～＋85 |
XC9221 | 2.8 | 16 | 1.2 | 15 | 3000 | ±1.5% | 300
500
1000 | 25 | -40～＋85 |
XC9223 | 2.5 | 6 | 0.9 | 6 | 1000 | ±2.0% | 1000
2000 | 30 | -40～＋85 |
XC9224 | 2.5 | 6 | 0.9 | 6 | 1000 | ±2.0% | 1000
2000 | 30 | -40～＋85 |
XC9235 | 1.8 | 6 | 0.8 | 4 | 600 | ±2.0% | 1200
3000 | 15 | -40～＋85 |
XC9236 | 1.8 | 6 | 0.8 | 4 | 600 | ±2.0% | 1200
3000 | 15 | -40～＋85 |
XC9237 | 1.8 | 6 | 0.8 | 4 | 600 | ±2.0% | 1200
3000 | 15 | -40～＋85 |
XC9242 | 2.7 | 6 | 0.9 | 6 | 2000 | ±2.0% | 1200
2400 | 41 | -40～＋85 |
XC9243 | 2.7 | 6 | 0.9 | 6 | 2000 | ±2.0% | 1200
2400 | 41 | -40～＋85 |
XC9244 | 2.3 | 6 | 0.8 | 4 | 400 | ±2.0% | 1200 | 18 | -40～＋85 |
XC9245 | 2.3 | 6 | 0.8 | 4 | 400 | ±2.0% | 1200 | 18 | -40～＋85 |
XC9252 | 3 | 30 | 0.8 | 30 | 10000 | ±2.0% | ADJ | 30 | -40～＋105 |
XC9265 | 2 | 6 | 1 | 4 | 200 | ±2.0% |
| 0.5 | -40～＋85 |
XC9270 | 7 | 30 | 1.2 | 12 | 2000 | ±2.0% | 300
500 | 200 | -40～＋105 |
XC9271 | 7 | 30 | 1.2 | 12 | 2000 | ±2.0% | 300
500 | 200 | -40～＋105 |
XC9274 | 2.7 | 5.5 | 0.8 | 3.6 | 3000 |
| 1200
3000 | 40 | -40～＋105 |
XCM526 | 4 | 16 | 1.2 | 15 | 3000 | ±1.5% | 500
1000 |
| -40～＋85 |
XC9246 | 4.5 | 16 | 1.2 | 5.6 | 1000 | ±2.0% | 1200 | 150 | -40～＋85 |
XC9247 | 4.5 | 16 | 1.2 | 5.6 | 1000 | ±2.0% | 1200 | 150 | -40～＋85 |
XC9250 | 7 | 30 | 1.2 | 12 | 2000 | ±2.0% | 300
500 | 200,250 | -40～＋105 |
XC9251 | 7 | 30 | 1.2 | 12 | 2000 | ±2.0% | 300
500 | 200,250 | -40～＋105 |
XC9272 | 2 | 6 | 0.6 | 0.95 | 50 |
|
| 0.5 | -40～＋85 |
XD9242 | 2.7 | 6 | 0.9 | 6 | 2000 | ±2.0% | 1200
2400 | 41 | -40 ～ + 85 |
XD9243 | 2.7 | 6 | 0.9 | 6 | 2000 | ±2.0% | 1200
2400 | 41 | -40 ～ + 85 |
XC9248 | 4.5 | 18 | 1 | 12 | 2200 | ±1.5% | 500 | 760 | -40～＋105 |
XC9257 | 2.5 | 5.5 | 0.8 | 3.6 | 1000 | ±2.0% | 1200
6000 | 250,400 | -40～＋105 |
XC9258 | 2.5 | 5.5 | 0.8 | 3.6 | 1000 | ±2.0% | 1200
6000 | 15,40 | -40～＋105 |
XC9259 | 2.5 | 5.5 | 0.8 | 3.6 | 1000 | ±2.0% | 1200
6000 | 15,40 | -40～＋105 |
XC9260 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 250,400 | -40～＋105 |
XC9261 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 15,25 | -40～＋105 |
XC9262 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 15,25 | -40～＋105 |
XC9263 | 3 | 18 | 1 | 15 | 500 | ±1.5% | 500
1200
2200 | 11.5, 12.5, 13.5 | -40～＋105 |
XC9264 | 3 | 18 | 1 | 15 | 500 | ±1.5% | 500
1200
2200 | 11.5, 12.5, 13.5 | -40～＋105 |
XC9266 | 2.7 | 5.5 | 0.8 | 3.6 | 6000 | ±1.0% | 1200
3000 | 40 | -40～＋105 |
XC9267 | 3 | 36 | 1 | 25 | 600 | ±1.5% | 1200
2200 | 180 | -40～+105 |
XC9268 | 3 | 36 | 1 | 25 | 600 | ±1.5% | 1200
2200 | 12.5 | -40～+105 |
XC9273 | 2.7 | 5.5 | 0.8 | 3.6 | 3000 |
| 1200
3000 | 40 | -40～＋105 |
XC9275 | 2.7 | 5.5 | 0.8 | 3.6 | 3000 |
| 1200
3000 | 40 | -40～＋105 |
XC9280 | 4.5 | 18 | 1.8 | 7 | 3000 | ±1.5% | 1200 | 80 | -40～+105 |
XD9260 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 25 | -40 ～ + 105 |
XD9261 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 25 | -40 ～ + 105 |
XD9263 | 3 | 18 | 1 | 15 | 500 | ±1.5% | 2200 | 13.5 | -40～+105 |
XD9264 | 3 | 18 | 1 | 15 | 500 | ±1.5% | 2200 | 13.5 | -40～+105 |
XD9267 | 3 | 36 | 1 | 25 | 600 | ±1.5% | 2200 | 290 | -40～+105 |
XD9268 | 3 | 36 | 1 | 25 | 600 | ±1.5% | 2200 | 13.5 | -40～+105 |
XD9707 | 3 | 36 | 1.8 | 12 | 600 | ±1.5% | 2200 | 290 | -40～+125 |
XD9708 | 3 | 36 | 1.8 | 12 | 600 | ±1.5% | 2200 | 13.5 | -40～+125 |
