?XC6366系列降壓DC/DC控制器TOREX
發布時間：2023-06-02 16:54:17 瀏覽：1384

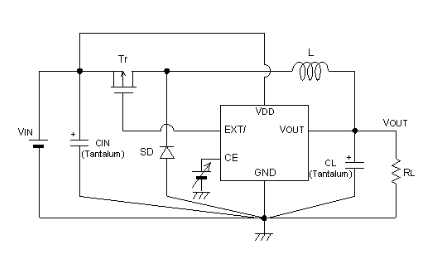

TOREX XC6366系列內嵌高速低通態電阻驅動器的通用型高頻率降壓DC/DC控制器集成電路。應用晶體管，電感線圈，二極管和電容器共4種外接器件，可搭建輸出電流為1A之上高效化降壓DC/DC轉換器。
XC6366系列降壓DC/DC控制器能夠在1.5V～6.0V(精密度±2.5％)范圍之內，以0.1V的間距實現設置(VOUT型)。而且，除去VOUT型之外，還具有內嵌1.0V的基準電壓源，能夠外接器件隨意設置輸出電壓的型號規格(FB型)。
因開關頻率高至300kHz，可以使用中小型外接器件。XC6366系列降壓DC/DC控制器在小負載時，PWM／PFM切換控制型XC6366系列以PFM作業形式進行工作。因此，在從小負載到大輸出電流的整體負載范圍之內，實現高效化。
XC6366系列降壓DC/DC控制器軟啟動時間段有，在設備設置為10ms的型號規格(A,B型)，及其適用外接電阻和電容器進行優化的的型號規格(C,D型)。
XC6366系列降壓DC/DC控制器應用待機性能，可停止運行使電流量損耗實現0.5μA以下(CE端"L")。
XC6366系列降壓DC/DC控制器內嵌UVLO性能，當輸入電壓在正常電流電壓以下時，會強制性的把外接晶體管切斷。
特性
輸入電壓范圍：2.2V～10V
輸出電壓范圍：1.5V～6.0V(0.1V間距),±2.5%
工作頻率：300kHz±15%,客戶定制180,500kHz
輸出電流：1.0A(VIN=5.0V,VOUT=3.0V)
高轉換效率：92%(TYP.)
待機電流：ISTB=0.5μA(MAX.)
TOREX半導體主要提供COMS、傳感器、二極管等元器件，產品以小體積、性能卓越而著名。
深圳市立維創展科技有限公司，優勢分銷TOREX電源器件，大量現貨庫存，歡迎合作。
詳情了解TOREX請點擊：http://www.sengliu.cn/brand/62.html
型號 | Type | Output Voltage | Oscillation Frequency | Packages |
XC6366A152ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.5V | 180kHz | USP-6C |
XC6366A152MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.5V | 180kHz | SOT-25 |
XC6366A153ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.5V | 300kHz | USP-6C |
XC6366A153MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.5V | 300kHz | SOT-25 |
XC6366A155ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.5V | 500kHz | USP-6C |
XC6366A155MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.5V | 500kHz | SOT-25 |
XC6366A162ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.6V | 180kHz | USP-6C |
XC6366A162MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.6V | 180kHz | SOT-25 |
XC6366A163ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.6V | 300kHz | USP-6C |
XC6366A163MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.6V | 300kHz | SOT-25 |
XC6366A165ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.6V | 500kHz | USP-6C |
XC6366A165MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.6V | 500kHz | SOT-25 |
XC6366A172ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.7V | 180kHz | USP-6C |
XC6366A172MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.7V | 180kHz | SOT-25 |
XC6366A173ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.7V | 300kHz | USP-6C |
XC6366A173MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.7V | 300kHz | SOT-25 |
XC6366A175ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.7V | 500kHz | USP-6C |
XC6366A175MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.7V | 500kHz | SOT-25 |
XC6366A182ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.8V | 180kHz | USP-6C |
XC6366A182MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.8V | 180kHz | SOT-25 |
XC6366A183ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.8V | 300kHz | USP-6C |
XC6366A183MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.8V | 300kHz | SOT-25 |
XC6366A185ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.8V | 500kHz | USP-6C |
XC6366A185MR-G | VOUT type: internally set-up, Soft-start internally set-up | 1.8V | 500kHz | SOT-25 |
XC6366A192ER-G | VOUT type: internally set-up, Soft-start internally set-up | 1.9V | 180kHz | USP-6C |
