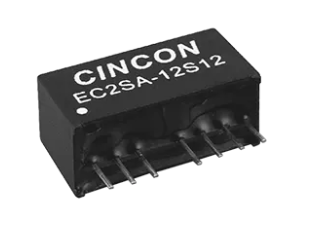

EC2SA-12S12穩壓DC-DC轉換器CINCON
發布時間：2024-04-24 09:00:34 瀏覽：748
EC2SA-12S12穩壓DC-DC轉換器是一種輸出功率為2W的隔離型穩壓轉換器，具有以下特點：
1. 輸出功率為2W，采用隔離輸出設計。
2. 采用緊湊型SIP-8封裝
3. 高效率，最高可達84%
4. 輸入電壓范圍為2:1
5. 提供穩定的穩壓輸出
6. 支持遠程開/關控制
7. 具備1500VDC的隔離能力
8. 內置連續短路保護和欠壓保護功能。
9. 符合IEC/EN/UL 62368-1標準
MODEL
NUMBER | INPUT
VOLTAGE | OUTPUT
VOLTAGE | OUTPUT CURRENT | INPUT CURRENT | %
EFF | CAPACITOR
LOAD MAX |
| MIN. | MAX | NO LOAD | FULL LOAD |
| EC2SA-05S33N | 4.5-9.0 VDC | 3.3 VDC | 0 mA | 500 mA | 60 mA | 452 mA | 73 | 500uF |
| EC2SA-05S05N | 4.5-9.0 VDC | 5 VDC | 0 mA | 400 mA | 60 mA | 526 mA | 76 | 400uF |
| EC2SA-05S12N | 4.5-9.0 VDC | 12 VDC | 0 mA | 167 mA | 60 mA | 501 mA | 80 | 167uF |
| EC2SA-05S15N | 4.5-9.0 VDC | 15 VDC | 0 mA | 134 mA | 60 mA | 503 mA | 80 | 134uF |
| EC2SA-05D05N | 4.5-9.0 VDC | ±5 VDC | ±0 mA | +200 mA | 60 mA | 519 mA | 77 | 200uF |
| EC2SA-05D12N | 4.5-9.0 VDC | ±12 VDC | ±0 mA | ±83 mA | 60 mA | 504 mA | 79 | 83uF |
| EC2SA-05D15N | 4.5-9.0 VDC | ±15 VDC | ±0 mA | +67 mA | 60 mA | 503 mA | 80 | 67uF |
| FC2SA-12S33N | 9-18 VDC | 3.3 VDC | 0 mA | 500 mA | 30 mA | 181 mA | 76 | 500uF |
| EC2SA-12S05N | 9-18 VDC | 5 VDC | 0 mA | 400 mA | 30 mA | 211 mA | 79 | 400uF |
| EC2SA-12S12N | 9-18 VDC | 12 VDC | 0 mA | 167 mA | 30 mA | 204 mA | 82 | 167uF |
| EC2SA-12S15N | 9-18 VDC | 15 VDC | 0 mA | 134 mA | 30 mA | 202 mA | 83 | 134uF |
| EC2SA-12D05N | 9-18 VDC | ±5 VDC | ±0 mA | +200 mA | 30 mA | 211 mA | 79 | 200uF |
| EC2SA-12D12N | 9-18 VDC | ±12 VDC | ±0 mA | ±83 mA | 30 mA | 202 mA | 82 | 83uF |
| EC2SA-12D15N | 9-18 VDC | ±15 VDC | ±0 mA | ±67 mA | 30 mA | 202 mA | 83 | 67uF |
| EC2SA-24S33N | 18-36 VDC | 3.3 VDC | 0 mA | 500 mA | 18m4 | 90 mA | 76 | 500uF |
| EC2SA-24S05N | 18-36 VDC | 5 VDC | 0 mA | 400 mA | 18 mA | 105 mA | 79 | 400uF |
| FC2SA-24S12N | 18-36 VDC | 12 VDC | 0 mA | 167 mA | 18m4 | 102 mA | 82 | 167uF |
| EC2SA-24S15N | 18-36 VDC | 15 VDC | 0 mA | 134 mA | 18 mA | 101 mA | 83 | 134uF |
| EC2SA-24D05N | 18-36 VDC | ±5 VDC | ±0 mA | ±200 mA | 18 mA | 105 mA | 79 | 200uF |
| EC2SA-24D12N | 18-36 VDC | ±12 VDC | ±0 mA | +83 mA | 18 mA | 102 mA | 81 | 83uF |
| EC2SA-24D15N | 18-36 VDC | ±15 VDC | ±0 mA | ±67 mA | 18 mA | 100 mA | 84 | 67uF |
| EC2SA-48S33N | 36-75 VDC | 3.3 VDC | 0 mA | 500 mA | 9 mA | 46 mA | 74 | 500uF |
| EC2SA-48S05N | 36-75 VDC | 5 VDC | 0 mA | 400 mA | 9 mA | 53 mA | 79 | 400uF |
| EC2SA-48S12N | 36-75 VDC | 12 VDC | 0 mA | 167 mA | 9 mA | 51 mA | 82 | 167uF |
| EC2SA-48S15N | 36-75 VDC | 15 VDC | 0 mA | 134 mA | 9 mA | 50 mA | 84 | 134uF |
| EC2SA-48D05N | 36-75 VDC | ±5 VDC | ±0 mA | ±200 mA | 9 mA | 53 mA | 78 | 200uF |
| EC2SA-48D12N | 36-75 VDC | ±12 VDC | ±0 mA | ±83 mA | 9 mA | 51 mA | 82 | 83uF |
| EC2SA-48D15N | 36-75 VDC | ±15 VDC | ±0 mA | ±67 mA | 9 mA | 50 mA | 84 | 67uF |
