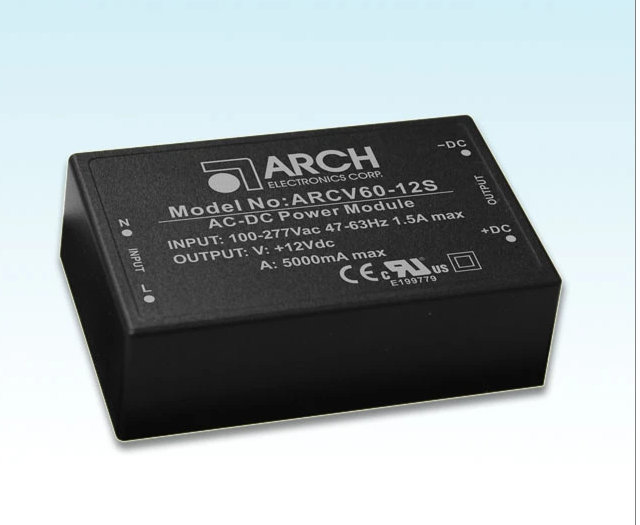

ARCV60-12S AC-DC ITE電源模塊ARCH
發布時間：2024-09-04 08:51:31 瀏覽：5369
ARCH ARCV60-12S AC-DC ITE電源模塊特點：
輸出功率：60W
緊湊尺寸：2.92英寸 x 1.85英寸 x 0.91英寸
寬輸入范圍：90至305VAC
多電壓輸出：12VDC, 15VDC, 24VDC
高隔離電壓：4300VAC I/O隔離
寬溫工作范圍：-40°C至+85°C
節能設計：低空載功耗 < 0.1W
高效率：高達90%
規格參數：
| Model No | ARCV60=128 | ARCV60-15S | ARCV60-248 |
| Max Output Wattage (W) | 60W |
| input | Voltage | 90-305 VAC or 120-430 VDC |
| Frequency (Hz | 47-63 Hz |
| Current (Full load) | 1500 mA max. (115 VAC)/1000 mA max. (230 VAC) |
| Inrush Current(<2ms) | 45 Amax. (115 VAC)/90 Amax. (230 VAC) |
| Leakage Curren | 0.25 mA max. (100-240 VAC) |
| No Load Power Consumption | <0.1W(115/230 VAC) |
| Output | Voltage (V.DC) | 12V | 15V | 24V |
| Voltage Accuracy | ±2% |
| Current (mA)max | 5000 | 4000 | 2500 |
| Line Regulaton (LL-HL)(typ.) | ±0.5% |
| Load Regulation (0-100%)(typ.) | ±1% |
| Minimum Load | 0% |
| Maximum Capacitive Load | 6000 uF | 5000 uF | 1200 uF |
| Rlpple &Noise (Full Load) | 120mV | 150mV | 240mV |
| Efficlency (at 230 VAC) | 90% | 90% | 90% |
| Hold-upTime (typ) | 30ms (at 230VAC |
| Protection | Over Power Protection | Auto recovenry |
| Over Voltage Protection | Zener diode clamp |
| Short Circuit Protection | Hiccup mode (automatic recovery |
| Isolation | nput-Output (V.AC) | 4300V |
| Environment | Operating Temperature | 40°℃...+85°C (with derating) |
| Storage Temperature | -40°℃...+85°℃ |
| Temperature Coefficlent | ±0.05%/°℃ |
| Altitude During Operation(UL/IEC/EN 62368-1) | 5000m |
| Humidity | 95%RH |
| MTBF | >300,000 h@25℃ (MIL-HDBK-217F) |
| Qver Voltage Category | Ⅲ:Compliance to EN 61558;altitude up to 2000 meters |
| Vibration | IEC60068-2-6 (10-500Hz,2G 10min./1cycle,60min.each along X,Y,Z axes |
| Shock | IEC60068-2-27 |
| Physica | Dimensions(LxWx H) | 2.92×1.85×0.91 Inches (74.2x47.0x23.1 mm)
Tolerance ±0.5 mm,Height Tolerance±1 mm |
| Case Material | Plastic resin(flammabilityto UL94V-0) |
| Weight | 158g |
| Cooling Method | Free air convection |
| Safety | Approva | UL/IEC/EN 62368-1 |
| Meet | IEC/EN61558-1,IEC/EN 61558-2-16,IEC/EN 60335-1 |
| EMC | EMI
(Conducted &Radiated Emlssion) | EN 55032 class B |
| EMS(Nolse Immunity) | EN 55035 |
深圳市立維創展科技授權代理ARCH電源模塊產品，提供高效率，高品質與小尺寸特性的產品滿足市場趨勢和需求，并提供技術支持服務，歡迎咨詢。
